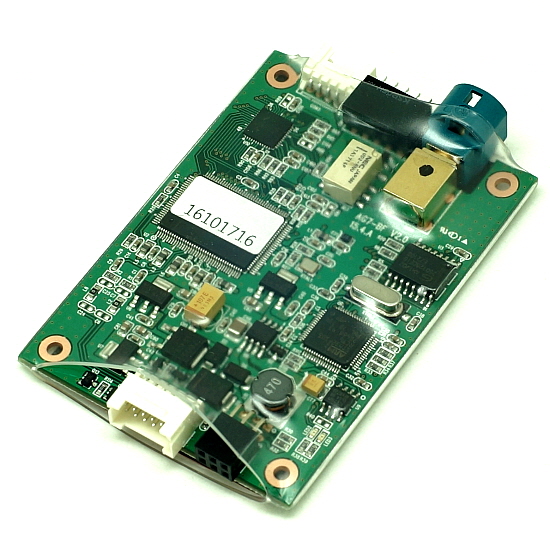

MK-AG7(AUDI)
Name:MK-AG7(AUDI)
Campatible Cars : MMI 3G+ system applied
Type:Camera interface
Feature:Stablity
1.Rear Camera x 1
2.Front Camera x 1
3.Competible Cars
Brand | Model | Year | Monitor | Note |
AUDI | A3 | 2014~ | 5.8" / 8" | 3G+ |
AUDI | A1 | 2014~ | 6.5" | 3G+★ |
1.Car Compatibility
:AUDI MMI 3G+
2.Components
:Interface x 1
3.Multimedia interface Input/output spec
Input:Rear Camera, Front Camera
Output:No output
4.Power sepc
Input power: 8VDC~22VDC
Consumption: 2.4WATT
5.Dip switch
Funtion
No | ON | OFF |
1 | Rear Camera use | No use for R.cam |
2 | Front Camera use | No use for F.cam |
Car and monitor setting
Car and monitor size | 3 | 4 | 5 |
GOLF 5.8" | ON | OFF | OFF |
GOLF 6.5" | OFF | OFF | ON |
GOLF 8" | OFF | OFF | OFF |
A3 5.8" | ON | ON | OFF |
A1 6.5" |
|
|
|
