Interface

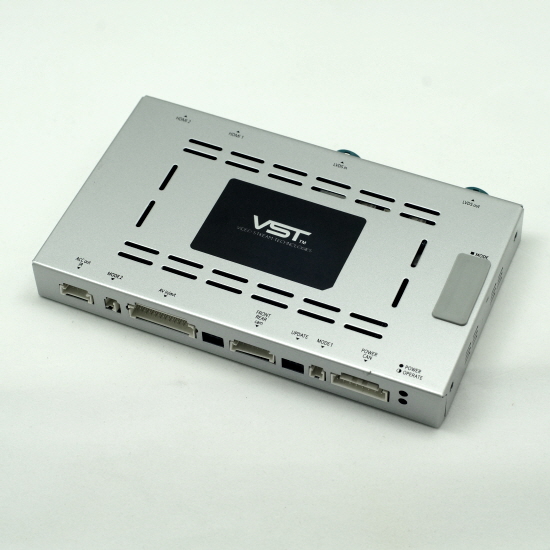

MK-BM06-HIO
Name:MK-BM06-HIO
Compatible Cars:BMW NBT evo (ID5 & ID6) System applied
Type:Navigation interface and Video interface
Feature:Variety external device connectable
1.Front Camera x 1
2.Rear Camear x 1
3.AV IN x 1:DTV, DVD etc CVBS OUT device connectable
4.HDMI IN x 3:HD DTV, Mirroring, Dvix player etc connectable
5.LVDS IN x 1:Navigation, LVDS OUT android settop box
6.ZOOM function:Making full screen for OEM DTV and DVD display
7.Navigation
Manufacturer | Navigation | Noted |
Fine-digital | BF-600G |
|
8.Compatible Cars
Brand | Model | Year | Monitor | Note |
BMW | 1 series(F20) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | 2series(F22) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | 2series Active Tourer(F45/F46) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | 2series coupe(F23) |
| 8.8" | NBT evo ID5 or ID6★ |
BMW | M2 coupe(F87) |
| 8.8" | NBT evo ID5 or ID6★ |
BMW | 3series(F30/F31/F34) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | M3(F80) |
| 8.8" | NBT evo ID5 or ID6★ |
BMW | 4series(F32/F33/F36) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | M4 coupe(F82) |
| 8.8" | NBT evo ID5 or ID6★ |
BMW | X1(F48) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | X3(F25) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | X4(F26) |
| 8.8" | NBT evo ID5 or ID6 |
BMW | 5series(G30/G31) |
| 10.2" | NBT evo ID5 or ID6 |
BMW | 6series(F12/F13/F06) |
| 10.2" | NBT evo ID5 or ID6 |
BMW | 7series(G11/G12) |
| 10.2" | NBT evo ID5 or ID6 |
BMW | X3(G01) |
| 10.2" | NBT evo ID5 or ID6 |
BMW | X5(F15) |
| 10.2" | NBT evo ID5 or ID6 |
BMW | X6(F16) |
| 10.2" | NBT evo ID5 or ID6 |
BMW MINI | MINI Countryman(F60) |
| 8.8" | NBT evo ID5 or ID6 |
BMW MINI | MINI Clubman(F54) |
| 8.8" | NBT evo ID5 or ID6 |
BMW MINI | MINI 3door(F56) |
| 8.8" | NBT evo ID5 or ID6 |
BMW MINI | MINI 5door(F55) |
| 8.8" | NBT evo ID5 or ID6 |
BMW MINI | MINI Convertible(F57) |
| 8.8" | NBT evo ID5 or ID6 |
※Monitors with/without OEM touch are both supported.
cf.I-drive 4th generation NBT evo ID5 & ID6 system UI(MINI UI included)
1.Car Compatibility
:BMW ID5 & ID6
2.Components
:interface x 1
3.Multimedia interface Input/output spec
Input:HDMI x 3, AV x 1, Rear camera, Front camera
Output:No output
4.Power spec
Input power: 8VDC~24VDC
Consumption: 10WATT
5.Dip switch
