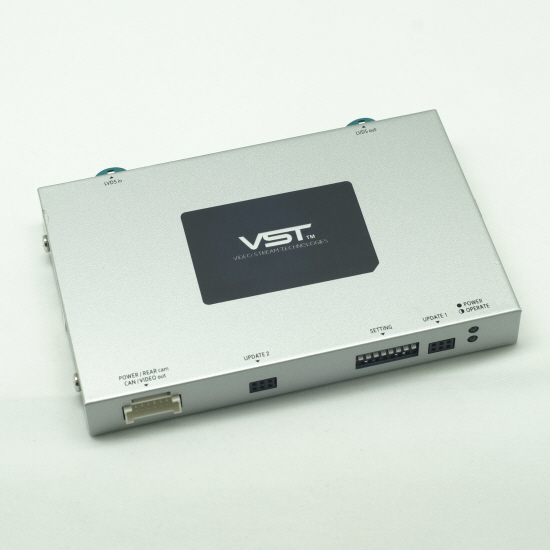

MK-BM03-3in1
Name:MK-BM03-3IN1
Compatible Cars:BMW NBT(CIC-HIGH)system
Type:Video interface
Feature: Desinged for installing rear seat monitors
1.Rear Camera x 1
2.AV OUT x 2:Rear Seat Monitor
3.Compatible Cars
Brand | Model | Year | Monitor | Note |
BMW | 1series(F20) | 2013~2014 | 6.5"/8.8" | NBT(CIC-HIGH) |
BMW | 2series(F22) | 2014~ | 6.5"/8.8" | NBT(CIC-HIGH) |
BMW | 2series Active tourer(F45/F46) | 2015~ | 6.5"/8.8" | NBT(CIC-HIGH) |
BMW | 3series(F30/F31/F34) | 2012~ | 8.8" | NBT(CIC-HIGH) |
BMW | 4series(F32/F33/F36) | 2013~ | 8.8" | NBT(CIC-HIGH) |
BMW | X1(F48) | 2015~ | 8.8" | NBT(CIC-HIGH) |
BMW | X3(F25) | 2014~ | 8.8" | NBT(CIC-HIGH) |
BMW | X4(F26) | 2014~ | 8.8" | NBT(CIC-HIGH) |
BMW | 5series(F10/F11/F07) | 2014~ | 10.2" | NBT(CIC-HIGH)★ |
BMW | 6series(F12/F13/F06) | 2015~ | 10.2" | NBT(CIC-HIGH)★ |
BMW | 7series(F01/F02) | 2014~2015 | 10.2" | NBT(CIC-HIGH)★ |
BMW | X5(F15) | 2014~ | 10.2" | NBT(CIC-HIGH)★ |
BMW | X6(F16) | 2014~ | 10.2" | NBT(CIC-HIGH)★ |
BMW MINI | MINI 3rd(F55/F56) | 2014~ | 6.5"/8.8" | NBT(CIC-HIGH) |
BMW MINI | MINI Clubman(F54) | 2015~ | 8.8" | NBT(CIC-HIGH) |
BMW MINI | MINI Convertible (F57) | 2015~ | 8.8" | NBT(CIC-HIGH) |
cf.I-drive 3rd NBT System UI (MINI UI Included)
1.Car Compatibility
:BMW NBT(CIC-HIGH)system
2.Components
:Interface x 1
3.Multimedia interface Input/output spec
Input:Rear Camera
Output:AV x 2
4.Power spec
Input power: 8VDC~22VDC
Consumption: 10WATT
5.Dip switch
rear camera setting
No. | No Camera/ No PDC | OEM camera/OEM PDC | a.market cam |
1 | OFF | ON | OFF |
2 | OFF | OFF | ON |
front camera setting
No. | Front camera use | No use |
3 | ON | OFF |
Monitor setting
No. | 8.8"/10.2" | 6.5" |
4 | OFF | ON |
head unit system setting
No. | F20,F30 CIC | NBT evo2 | NBT evo1 | NEW NBT2 | NEW NBT1 | OLD NBT |
5 | ON | OFF | OFF | OFF | OFF | OFF |
6 | OFF | OFF | OFF | ON | ON | ON |
7 | OFF | OFF | ON | OFF | ON | ON |
8 | OFF | OFF | OFF | OFF | OFF | ON |
비고 | F20, F30의 i-drive 기동화면이 [BMW Connected Drive]가 아닌 BMW의 타입 | 2015/7~ F45,F30,F56 etc | F20~F23 |
~2015/7 F20,F30,F56 etc | ~ 2015/7 X3, X4, F45 etc | other except the left setting |
①NBT evo: head unit size 1.5DIN
②NEW NBT:head unit size 2DIN
③OLD NBT: Neither NBT evo or NEW NBT
※Usually OLD NBT setting is no used
※DIPswitch from 9 are OFF
