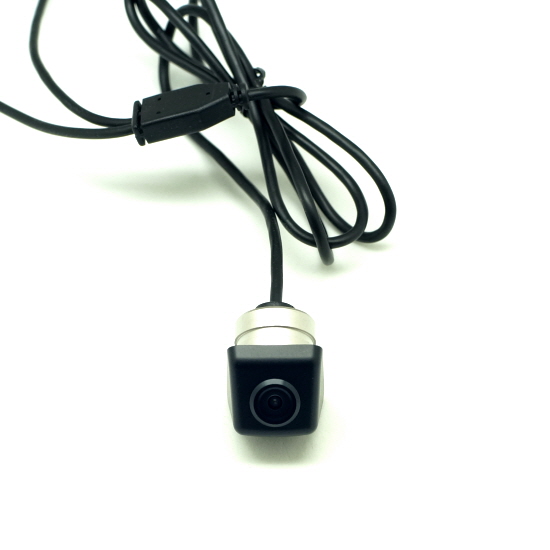

Camera
VST2(Clip)
Model:VST2
Compatible Cars:ALL
Type:Garnish
Features:CCD
1.1/3" 960H Sharp Image Sensor
2.Clear picture image and Low light Performance
3.162° Wide Viewing Angle
4.Low Light Performance:0.1Lux at F1.2
5.Waterproof IP68
6.Zinc Die-casting Case
DESCRIPTION | NTSC |
Pick-up Device | 1/3" 520K |
Number of image Pixels | 976(H)x494(V) |
Output Image | Wide Viewing Angle and Mirror |
Operating Voltage | DC 12V(±10%) Only |
Consumption Current | 90mA(MAX) |
LENS | D(162°) H(117°) V(85°) at F2.26 |
Video output | CVBS:1.0Vp-p,75Ω composite |
Shutter Control | Electronic Auto IRIS(1/60,1/50~1/100,000) |
Horizontal Resolution | 700 TV Line(MAX) |
Min.illumination | 0.1Lux at F1.2 |
S/N Ratio | 48dB(AGC off) |
Operating Temperature | -30°C ~ +85°C |
Storage Temperature | -40°C ~ +125°C |
Material | Zinc |
Cable Length | Camera 1m/ Extension 7m |
