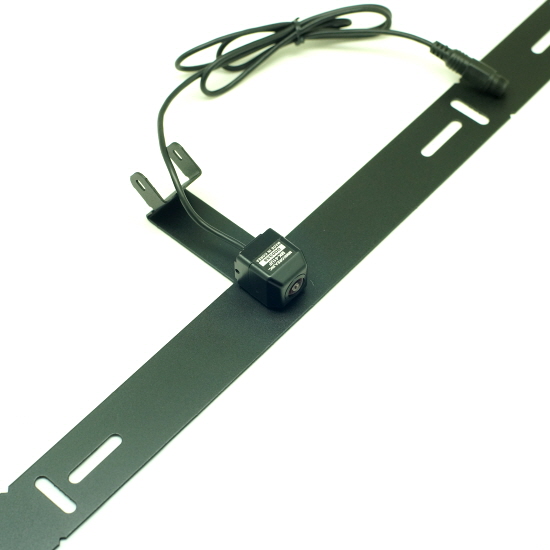

MK-41UF(모드 전환 전방카메라)
제품명:MK-41UF
적용차종:전차종
종류:"번호판" 브라켓
특징:CCD, 화면 분할
1.1/3.7" One Chip Package Image Sensor
2.Clear picture image and Low light Performance
3.212° Wide Viewing Angle
4.Low Light Performance:0.1Lux at F1.2
5.Waterproof IP68
6.Zinc Die-casting Case
DESCRIPTION | NTSC |
Pick-up Device | 1/3.7" Color image sensor |
Number of image Pixels | 682(H) x 496(V) |
Output Image | Wide Viewing Angle and Mirror |
Operating Voltage | DC 12V(6V-20V) |
Consumption Current | 50mA(MAX) at DC12V |
LENS | Wide Viewing Angle 212°, F=1.8 |
Video output | CVBS:1.0Vp-p,75Ω composite |
Shutter Control | Electronic Auto IRIS(1/60,1/50~1/100,000) |
Horizontal Resolution | 450 TV Line(MAX) |
Min.illumination | 0.1Lux |
S/N Ratio | More than 42dB |
Operating Temperature | -30°C ~ +85°C |
Storage Temperature | -40°C ~ +125°C |
Material | Zinc |
Cable Length | Camera 1m/ Extension 4m |
