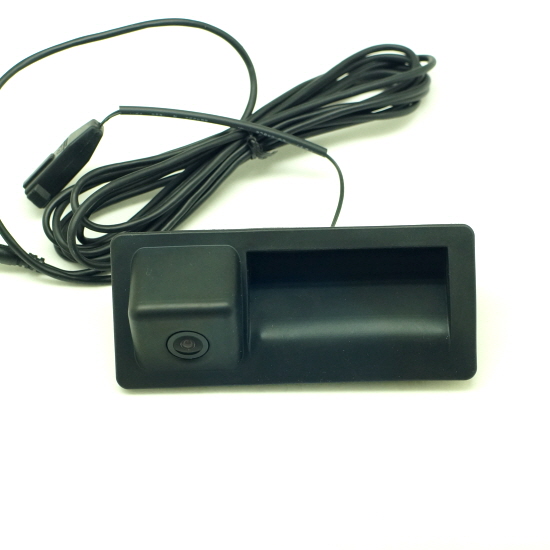

MK-51VCG(VW 전용 카메라)

제품명:MK-51VCG



적용차종:폭스바겐 전용(티구안, 제타, 파사트)



종류:가니쉬 타입(손잡이형)



특징:CMOS

문의하기
1.1/3.7” One Chip Package Image Sensor



2.Clear Picture Image and Low Light Performance



3.163° Wide Viewing Angle



4.Low Light Performance : 0.1 Lux



5.Waterproof IP68



6.Zinc Die-casting Case

DESCRIPTION

 NTSC

 Pick-up Device

 1/3.7" Color image sensor

 Number of image Pixels

 682(H) x 496(V)

 Output Image

 Wide Viewing Angle and Mirror

 Operating Voltage

 DC 12V(6V-20V)

 Consumption Current

 50mA(MAX) at DC12V

 LENS

 Wide Viewing Angle 163°, F=1.9

 Video output

 CVBS:1.0Vp-p,75Ω composite

 Shutter Control

 Electronic Auto IRIS(1/60,1/50~1/100,000)

 Horizontal Resolution

 450 TV Line(MAX)

 Min.illumination

 0.1Lux

 S/N Ratio

 More than 42dB

 Operating Temperature

 -30°C ~ +85°C

 Storage Temperature

 -40°C ~ +125°C

 Material

 Zinc

 Cable Length

 Camera 2.5m/ Extension 7m
