카메라

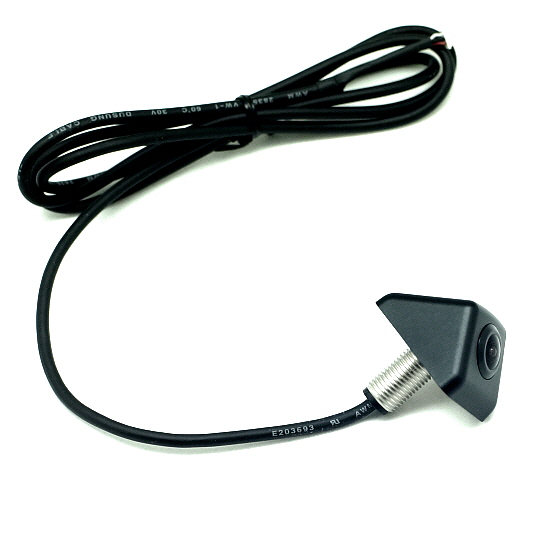

VST7
제품명:VST7
적용차종:전차종
종류:가니쉬 타입, 트렁크 타입 2종류
특징:CMOS, 주차라인 생성 가능
1.1/3.7” One Chip Package Image Sensor
2.Clear Picture Image and Low Light Performance
3.163° Wide Viewing Angle
4.Low Light Performance : 0.1 Lux
5.Waterproof IP68
6.Zinc Die-casting Case
DESCRIPTION | NTSC |
Pick-up Device | 1/3.7" Color image sensor |
Number of image Pixels | 682(H) x 496(V) |
Output Image | Wide Viewing Angle and Mirror |
Operating Voltage | DC 12V(6V-20V) |
Consumption Current | 50mA(MAX) at DC12V |
LENS | Wide Viewing Angle 163°, F=1.9 |
Video output | CVBS:1.0Vp-p,75Ω composite |
Shutter Control | Electronic Auto IRIS(1/60,1/50~1/100,000) |
Horizontal Resolution | 450 TV Line(MAX) |
Min.illumination | 0.1Lux |
S/N Ratio | More than 42dB |
Operating Temperature | -30°C ~ +85°C |
Storage Temperature | -40°C ~ +125°C |
Material | Zinc |
Cable Length | Camera 1m/ Extension 7m |
VST7_Manual.pdf
(7.7M)
