카메라

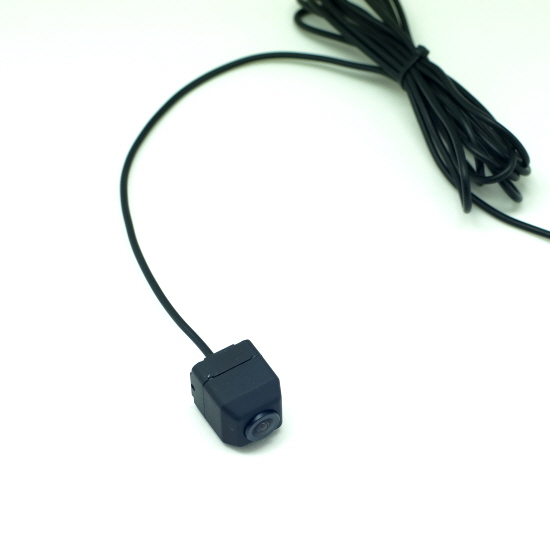

MK-168U
제품명:MK-168U
적용차종:전차종
종류:가니쉬 타입(브라켓 이용)
특징:CCD
1.1/3" 960H Sharp Image Sensor
2.Clear picture image and Low light Performance
3.162° Wide Viewing Angle
4.Low Light Performance:0.1Lux at F1.2
5.Waterproof IP68
6.Zinc Die-casting Case
DESCRIPTION |
NTSC |
Pick-up Device |
1/3" 520K |
Number of image Pixels |
976(H)x494(V) |
Output Image |
Wide Viewing Angle and Mirror |
Operating Voltage |
DC 12V(±10%) Only |
Consumption Current |
90mA(MAX) |
LENS |
D(162°) H(117°) V(85°) at F2.26 |
Video output |
CVBS:1.0Vp-p,75Ω composite |
Shutter Control |
Electronic Auto IRIS(1/60,1/50~1/100,000) |
Horizontal Resolution |
700 TV Line(MAX) |
Min.illumination |
0.1Lux at F1.2 |
S/N Ratio |
48dB(AGC off) |
Operating Temperature |
-30°C ~ +85°C |
Storage Temperature |
-40°C ~ +125°C |
Material |
Zinc |
Cable Length |
Camera 2.5m/ Extension 7m |
