차량용 오디오

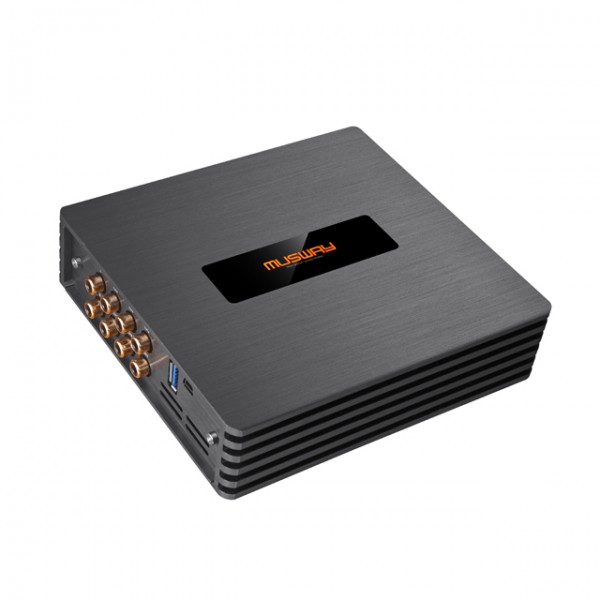

M4
제품명:M4
제품분류
1. 앰프 내장형 DSP
제품특징
1. 차량 손상없은 Plug & Play 장착 방식
2. 고음질 블루투스 모듈 옵션 가능
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs
• Dual 32bit, 330 MIPS DSP technology controllable via PC software or APP
• Plug+Play with vehicle-specific cable sets
• External Bluetooth® USB-Dongles (BTS) for Audio Streaming (optional)
• P2 : 2Ch mini amplifier to drive subwoofer (optional)
4 x 55 Watts RMS @ 4 Ohms
4 x High Level Inputs, 2 x AUX/RCA Inputs
4 x Loudspeaker Outputs amplified
6 x Pre-Amplifier Outputs/RCA (configurable via DSP)
Dimensions in mm: 165 (L) x 150 (W) x 41 (H)
M4 Manual.pdf
(1,011.4K)
